Router com wifi, porta voip, faz bridge e nat, pppoe,dhcp, static

**A configuração pode ser feita diretamente pelo ANM2000 em caso da OLT seja da FIBERHOME, se a OLT for de outro fabricante a configuracao e feita via browser**

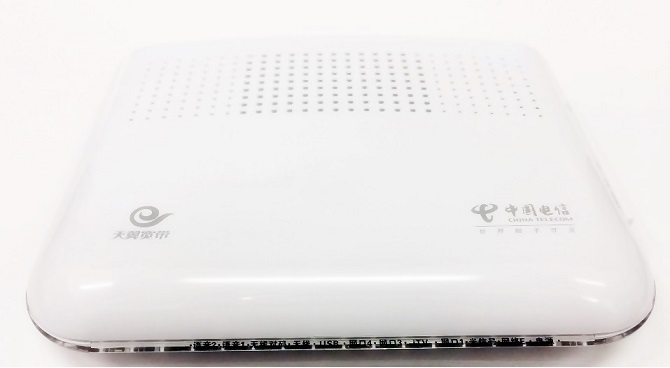

FiberHome HG220 is a kind of multi-service integrated
access gateway designed for home and small enterprise
user which provides broadband connection through FTTH
access. It is ideal for the home user who wants a home
network armed with the VoIP, internet and IPTV etc.
Integrates EPON interface, and complies with IEEE802.3ah
Integrates 802.11b/g/n wireless access function, the highest rate is up to 300Mbps
Supports route/bridge hybrid forwarding
Supports VLAN connection
Home storage and print sharing
Built-in SPI firewall ensures the security of home network equipment
Supports VOIP protocols such as SIP/MGCP/H.248 and so on, and supports multiple voice coders
Supports VPN’s NAT traversal based on IPSec/L2TP
Supports multi-SSID and provides multiple virtual wireless networks
Supports Web mode and local management of user
Supports CLI management
Powerful QoS capability, ensuring the quality of major services such as VoIP, IPTV and so on in multi-service environment
Supports TR-069 remote management: equipment configuration, version upgrade, diagnosis, etc.
CE certified
Provides additional value-added service function
3.2 FiberHome HG220 Product
Features

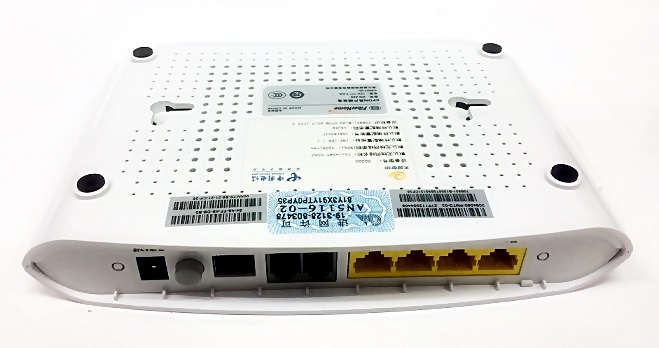

Physical Interface
Uplink interface:
One 1.25G EPON interface
Downlink interface:
4 self-adaptive Ethernet interfaces (RJ45)
1 USB 2.0 Master interface
1 802.11b/g/n WiFi interface
2 RJ11 POTs interface
WiFi
Complies with 802.11b/g/n
Supports WEP, WPA and WPA2
Supports multi-SSID
Supports JumpStart
With Coverage of 70~250m
Voice
Supports Voice over IP, and supports signaling protocols such as
SIP (RFC3261), MGCP/H.248 and so on
Supports multiple voice encoding: supports G.711 a/u law, G.729a,
G.723, G.726, etc.
Supports value-added voice service: call transfer, call waiting,
incoming call display, abbreviated dialing, hotline service, Don’t
Disturb Service, alarm clock, outgoing call barring, etc.
Security Policy
Supports MAC filtration and IP ACL function
Supports NAT, NAPT, NAT ALG, Port Forwarding and Port Trigger
Supports firewall functions: supports universal intrusion detection
and restraint, DoS protection, DMZ, SPI Firewall
Supports L2TP, IPsec VPN
Supports SSL/TLS
Supports HTTPS
Supports secure wireless access such as WPA and so on
QoS Policy
DWRR, RED Queue Scheduling support
Supports rate limitation at ingress
IP QoS: supports flow classification and DSCP based on source
and destination IP address, source and destination port number
and protocol type
Can provide QoS guarantee for different services based on VLAN
priority
Management Capability
Supports TR-069
Supports secure WEB mode management
Supports CLI management
Supports local and remote upgrade of both software and firmware
Supports condition monitoring and performance statistics
Protocol Supported
Supports IPv4/v6 and TCP/UDP protocols
Supports PPPOE/ PPPOE Proxy
Supports network application layer protocols such as FTP and
HTTP
Supports static routing protocol
Supports DHCP Server/Client/Relay
Supports multicast: IGMP Snooping, IGMP Proxy, RFC2236
IGMP V2
Supports DNS relay, DDNS
Supports UPnP, IGD
Supports SNTP protocol
Supports VPN’s NAT traversal
Supports Firewall/NAT, DMZ Host and all kinds of filtration
policies
Environmental Requirements
Operating temperature: -5°C~50 ° C
Storage temperature: -40 °C~70 ° C
Moisture range: 5%~95%, non-condensing
Physical Specification
Dimension: 210mm (width) ×38mm (height) ×180mm (depth)
Weight: 500g
Electrical Characteristics
Operating power supply: external power adapter
Input: 100v-240v, 50hz-60hz
Output voltage: 12V DC
Output current: 2.5A
Maximum power: 20W
