PIGTAIL: 28909

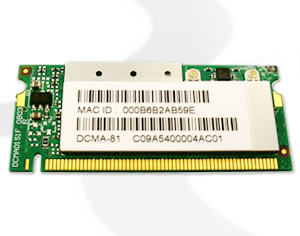

Adaptador mini-PCI, meia size design, compatível com IEEE 802.11a/b/g: permitir inter-operação entre os vários fornecedores de Suporte Atheros Super A / GTM Mode. Fornecer serviços de roaming na IEEE 802.11 a / b / g WLAN infra função Site Survey.

Attributes:
Operation mode AP, Client, Ad-HOC
Frequence 2.4, 5 GHz
Transmission speed 11, 54 Mbps
Standards 802.11b, 802.11g, 802.11a
Chipset Atheros AR5006XS
Output for an external antenna 2 x U-FL male
TX Power regulation Yes ( Mikrotik, STAR-OS, StarV3 )
Max.output power 17 dBm
Sensitivity max. a:- 87 dBm, b: -94dBm, g: -87 dBm
Modulation DSSS, OFDM
Encryption WEP 64, WEP 128, WEP 152
Comformity FCC, CE
Operational temperature 0 - 70 °C
Weight 0.01 kg
Interface miniPCI
Supported OS Windows, Linux
Consuption 35 až 360 mW
