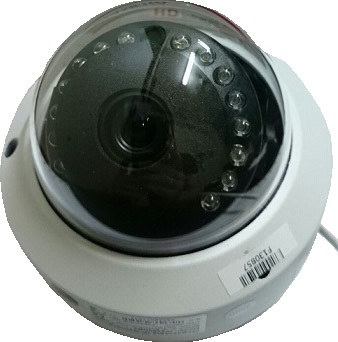

  FICO CAMERA IR DOME FC-1P6960HD1 960P 1.3MP LENTE 6MM
Código: 3672
clique na imagem para ampliar
u$ 20,00

FC-IP6960HD





Main Features

Full HD Network Camera

proof IR DOME 30M

Support high definition resolution1.3 Megapixels 30 fps @960 real-time image
H.264/MJPEG compression with Auto IR-CUT, Low illumination and WDR.
Support WEB browser, remote config/update, replay, record
Delay Time Less than 200 MSEL (0.2 second) in LAN.
DDNS in LAN/WAN access supported
Support two-way audio
Support triple stream, Internet transmission and local storage independently

Support RS232 and RS485 (PTZ) interface
Support snapshot, record, replay
support ONVIF/PSIA
Mobile surveillance optional




Specifications :

Model
FC-IP6960HD
Box IP Camera TI(Texas Instrument) SOC Chipset
Image Sensor
1/2.7" 1.3Megapixel Progressive Scan CMOS
Effective Pixels
960P
Lens optional
yes
Lens Mount
CS Mount
Auto Iris Lens
DC
Minimum Illumination
Color?[email protected]; B/W?[email protected];0 Lux(IR on)
Exposal control
Auto
Electronic Shutter Speed
1/50s —1/4,000 sec.
Image Setting
Brightness, contrast, hue, AGC,AWB, Privacy mask, Motion Detection
Image Flip
Yes
S/N Ratio
More than 50 dB
Analog Video Output
1Vp-p Composite Output (75 Ohm, BNC)
Video Compression
H.264/MPEG-4SP/MJPEG
Bit-rate Range
1M?16Mbps/1M?20Mbps?CBR/VBR variable
Audio Compression
G.726/G.711/G.722
Max. Image Resolution
1920*1080
Frame Rate
25 fps (1600*1200), 25 fps (1024*768), 25 fps (800*600)?25 fps (352*288) Optional
Function
Remote config/update
Support
Network Protocol
PPPoE DHCP TCP/IP HTTP UDP RTP/RTCP RTSP UPNP SMTP FTP DDNS DNS
Security
Multi-level user access with password protection
HeartBeat
Support
Triple Stream
30 fps (1920*1080), 25 fps (352*288)/ 30 fps (1280*7280), 25 fps (704*288) Optional
Local Storage
TF Card Support video record and snapshot
Communication port
10/100Mbps, RJ45 Adaptive Ethernet port
1 RS-485(PTZ),1RS-232
Audio Interface
1 channel 3.5mm audio interface input (BNC?MIC Via DIP Switch)
1 channel 3.5mm audio interface output
Alarm port
1 in / 1 out
Intelligent Alarm
Motion Detection, Video Tampering, I/O Alarm
General
Voltage
DC12V/2A (POE optional)
Temperature
-10º C?60º C
Humidity
≤95%
Consumption
<12W
Net Weight
0.7 KG
Product Dimension (mm)
128 L *128(W)* 120(H)





Diagram:
