Cambium C050900C671A CABO BRASIL

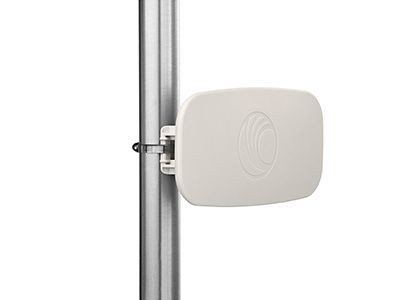

ePMP 5 GHz Force 180 Int. Radio ROW

EPMP Force 5GHz 180 é a nova geração da EPMP 5GHz Rádio integrada oferecendo um maior ganho, antena integrada de 16 dBi patch.

O suporte de montagem ajustável facilita a tarefa de instalação e alinhando o rádio adequadamente.

Pequeno e elegante Force 180 está equipada com porta Ethernet Giagabit para entregar a taxa de transferência máxima.

Especificações

Model Number: MODEL NUMBER
C058900P072A (US/FCC), C050900P071A (EU/ROW),

SPECTRUM
Channel Spacing: Configurable on 5 MHz increments
Frequency Range: 5 GHz: 4910 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width: 5 | 10 | 20 | 40 MHz

INTERFACE
MAC (Media Access Control) Layer: Cambium Proprietary

Physical Layer: 2x2 MIMO/OFDM

Ethernet Interfaced: 10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8)

Protocols Used
IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

Network Management
HTTPs, SNMPv2c, SSH

VLAN
802.1Q with 802.1p priority

PERFORMANCE

ARQ: Yes

Nominal Receive Sensitivity (w/FEC) @200MHz
Channel
MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)

Nominal Receive Sensitivity (w/FEC) @40MHz
Channel
MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)

Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS15 (64QAM 5/6)

Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and
Station Priority

LINK BUDGET

Transmit Power Range
-17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

Integrated Antenna Peak Gain: 16 dBi

Maximum Transmit Power: 30 dBm combined (subject to regional regulatory restrictions)

PHYSICAL
Antenna Connection: Integrated Antenna

Surge Suppression: 2 Joule Integrated

Environmental: IP55

Temperature: -30°C to +60°C (-22°F to +140°F)

Weight: 0.50 kg (1.1 lb.) (includes mounting bracket)

Wind Survival: 145 km/hour (90 mi/hour) with antenna

Dimensions (h x w x d)
12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) with mounting bracket attached

Pole Diameter Range
1 1.6 in (2.5 4.1 cm) with included clamp ; up to 2.25 in (5.7 cm) with larger clamp

Power Consumption: 10 W Maximum, 5 W Typical

Input Voltage: 10 to 30 V
