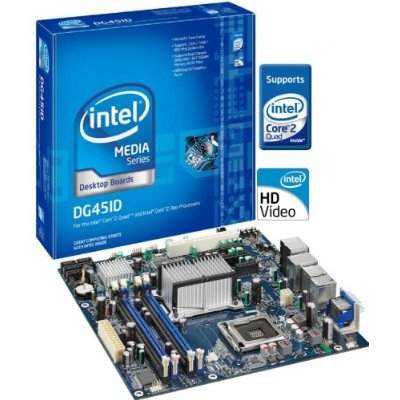

MB PIV INTEL DG451D

Features and benefits
Form factor MicroATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor

View supported processors for the most current list of compatible processors.

At product launch, this desktop board supports:

* Support for an Intel® Core™2 Quad processor in an LGA775 socket
* Support for an Intel® Core™2 Duo processor in an LGA775 socket
* Support for an Intel® Pentium® processor in an LGA775 socket
* Support for an Intel® Celeron® processor in an LGA775 socket
* Support for an Intel® Celeron® processor 400 sequence in an LGA775 socket

Memory

* Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
* Support for DDR2 800/667 MHz DIMMs
* Support for up to 8 GB of system memory

Chipset

* Intel® G45 Express Chipset

Audio

Intel® High Definition Audio subsystem in the following configuration:

* 8-channel (7.1) audio subsystem with five analog audio outputs and one optical S/PDIF digital audio output using the IDT 92HD73E audio codec

Video Intel® Graphics Media Accelerator X4500HD onboard graphics subsystem with integrated HDMI + DVI-I display ports
LAN support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82567LF Gigabit Ethernet Controller
Peripheral interfaces

* Up to 12 USB 2.0 ports (6 back ports and 6 via headers)
* Six Serial ATA 3.0 Gb/s ports, including 1 eSATA back port with RAID 0, 1, 5, 10 support
* Two IEEE-1394a ports (1 external port, 1 internal header)
* Consumer IR receiver and emitter (via internal headers)
* One serial port via header

Expansion capabilities

* One PCI Express* x16 bus add-in card connector
* Two PCI Express* x1 bus add-in card connectors
* One PCI Conventional* bus add-in card connector
