ATENÇÃO , USAR PIG DO CÓD : 17124

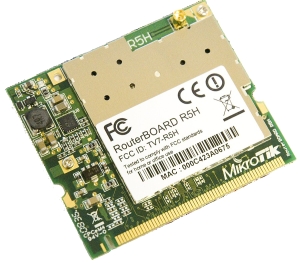

High power 802.11a miniPCI card with a sturdy
MMCX antenna connector.
Key Features and Benefits
Atheros AR5414A B2B
Average power up to 25dBm
Flexible DC supply, 3.3Vdc or 3.3Vdc+5.0Vdc
Easily shift one onboard resistor to change power supply
External Screw hole reserved against vibration
DIP type MMCX RF connectors provide robust assembly
for antenna
Industrial Operation temp. : -40~+80 degrees C
Heat sink design provides reliable high power RF
performance
Wide dynamic power control range:
2.5dBm~25dBm(+/- 2dB)
Integrated RF ESD and surge protector
High rejection filter to reduce interference
This industrial grade 802.11a wireless card from MikroTik is a new standard in quality. MMCX
antenna connector provides a secure and sturdy connection to your antenna, and a special
screw connection allows you to securely fasten the card in it’s place.
The R5H can work in very severe conditions - the operational temperature can range from
-40 to +80 degrees Celsius, which is much more than any competing product.
The R5H provides three kinds of filters in RX path for selection to reject unwanted signals. It
will increase alternate channel rejection capability, so that more bandwidth can be used for
communication. Because of the high sensitivity of R5H, it can achieve the same distance as
competing products with higher power.

Average Sensitivity
Condition MIN TYP MAX Units
6Mbps -96 -93 -90
DBm
9Mbps -96 -93 -90
12Mbps -94 -91 -88
18Mbps -92 -89 -86
24Mbps -89 -86 -83
36Mbps -85 -82 -79
48Mbps -80 -77 -74
54Mbps -78 -75 -72

Average TX Power
5GHz
MHz
5170 5400 5500 5700 5805 5825
6M 23.5 24 24.5 25 25 25
9M 23.5 24 24.5 25 25 25
12M 23.5 24 24.5 25 25 25
18M 23.5 24 24.5 25 25 25
24M 23.5 24 24 25 25 25
36M 22.5 23 24 24 24 24
48M 20 20 21 22 21.5 21.5
54M 19.5 19.5 20 21 20.5 20.5
