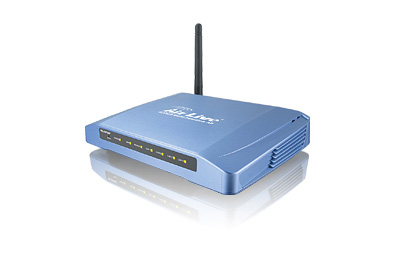

A AirLive anunciou no mercado internacional o ponto de acesso WL-5470, sem fio, com oito modos de operação. São eles: ponto de acesso, ponte, cliente, gateway e retransmissor. Ainda vem com antena de 2 dB e 5 portas de rede, que permitem transformar o produto em um roteador (com 4 portas LAN e uma para a conexão dedicada WAN). A segurança é garantida com encriptação WEP/WPA e autenticação IEEE 8021x.

Feature
AP, Bridge, Client, Repeater functions
Router and Gateway mode
WISP Client Router mode
WISP + Universal Repeater Mode
Up to 25dBm output power
Hardware Power Amplifier
Detachable Antenna, 5 LAN ports
802.1x, WPA, WPA2 and Web Mgt.
TX power regulation in 4 levels
Watchdog function use PING
Wireless Client Isolation
WDS Site Survey
ACK Timeout Adjustment
DHCP Relay function

Modulation Technique 11g Orthogonal Frequency Division Multiplexing (64QAM, 16QAM, QPSK,
BPSK)
11b Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)
Data Rate: 54, 48, 36, 24, 18,11, 5.5, 2, 1 Mbps
Output Power 20dBm(EU), 23dBm(FCC), 26dBm(South America)
Adjustable in 7 levels
MAC Access Control
MAC Access Table
Wireless Client Isolation (e8 firmware)
SSID, Channel, RTS Threshold, Frag Threshold

Environmental Operating temperature: 0~60 ?; Operating humidity (non-condensing):
20~80%
Storage temperature: -20~65 ?
Storage humidity: 95% Max

Power Supply DC12V
EMI FCC, CE
Product Weight (g) 236 g
Product Size
( L x W x H (mm) ) 160 x 115 x 30 mm
802.11g Protection
MAC Access Control
Telnet

Hardware
5 x 10/100Mbps LAN Port
2MB Flash, 16MB SDRAM
Reversed SMA Antenna Port
Power, LAN, WLAN LED indicators

Antenna
2 dBi detachable Dipole Antenna
Reversed SMA Connector

WISP Mode
DHCP, PPTP, L2TP, PPPoE ISP Authentication Support
Wireless Client function as WAN
To configure the WISP mode, you PC must be connected to the LAN port

Gateway Mode
1 WAN and 4 LAN ports
NAT Routing between WAN and LAN port
Wireless used for LAN side
Virtual Server, MAC filtering, DMZ, Firewall, IP filtering functions

Security 64/128-bit
802.1x Radius Support
WPA/WPA2-PSK support
WPA Enterprise support in AP/WDS mode

Configuration Web Management
WDS (Bridge, Client, Repeater) mode
Hide ESSID
802.1x

Frequency Range USA (FCC) 11 Channels: 2.412GHz~2.462GHz
Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Japan (TELEC) 14 Channels :2.412GHz~2.483GHz
