Número do artigo: ECB300

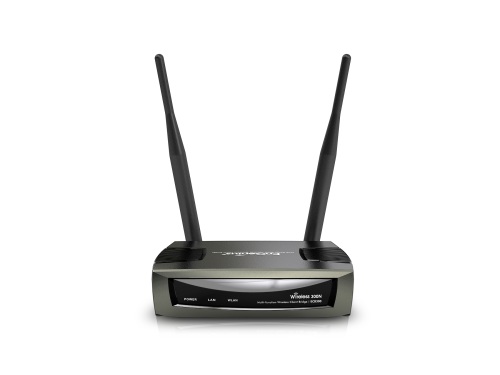

EnGenius ECB-300 802.11b/g/n AP / CB / WDS / CR, 2TX 2 Rx: 300Mbps, integrado 2x Antena 5dBi
ECB300 é um 300Mbps Wireless-N multi-função AP / CB, que oferece cobertura ilimitada, forte penetração, gerenciamento de rede seguro e 802.3af PoE conexão. externa 5dBi antena fornece amplo e estável conexão sem fio. MSSID + VLAN tornar os dados mais seguro e fácil gerenciamento. Padrão de interoperabilidade com PoE 802.3af faz conexão com a internet mais flexível. ECB300 projetado com seis modos de operação, os usuários podem definir o modo diferente em diferentes ambientes. É um modelo multi-função adequada para a usos de SOHO, escritórios, restaurantes e etc ...

System Windows Windows7, 98, ME, NT, XP, 2000. Mac OS X (10.7)
Access method Web Based (HTTP 1.0 / 1.1)
Browser Compatibility Microsoft IE 6.0 or above, Firefox 2.0 or above
Status
System Status System Information System Up Time, Device Name, Wireless MAC, LAN
MAC, Country, Current Time, Firmware Version
Current IP Setting IP Address, Subnet Mask, Default Gateway, DHCP,
DNS.
Current Wireless Setting Operation mode, Wireless Mode, Channel/
Frequency, L2 Isolation, MSSID Setting
Client List List current associated clients. Show only authorized and associated clients
System Log Displays a list of events triggered
Wireless Functional List ECB300
Long Range Multi-function AP/CB
2.4GHz 300Mbps 11b/g/n 29dBm AP/Router/WDS Bridge/WDS AP/CB/UP
Operation mode AP
Router
Client Bridge
WDS AP
WDS Bridge
Universal Repeater
WDS detail
WDS AP algorithm
WDS bridge algorithm
802.11 mode options b/g/n
Channel setting Manual
Auto / Best Channel Selection
Transfer rate setting Auto and Manual
Output Power Control Select by dBm
Multiple BSSID (Multi AP) 4 BSSID for 2.4Ghz
Each BSSID should has its own WiFi & security settings
Security WEP WEP(64/128bit)
WPA/ WPA2 TKIP / AES
Hidden ESSID
MAC address
filtering
MAC address filtering (WLAN, up to 32 field)
L2 Isolation Client isolation
802.1x
Authenticator
MD5/ TLS/ TTLS, PEAP (Nice to Have)
802.1x Supplicant Only CB/CR modes
LAN Settings IP (check validity and DHCP server IP range)
DHCP server DHCP Range, Lease Time, Client list
VLAN MSSID VLAN tag on MSSID
Management VLAN
Ethernet Port VID
Only allow user with specified VID to access the device
Tag/ Untag Option Independent VLAN setting can be enable or disable ECB300
Long Range Multi-function AP/CB
2.4GHz 300Mbps 11b/g/n 29dBm AP/Router/WDS Bridge/WDS AP/CB/UP
Add VLAN tag Any packet that enters the Device without a VLAN tag will have a VLAN
tag inserted with a PVID (Ethernet Port VID)
SNMP SNMP V1/V2C
- SNMP Active : Disabled / Enabled
- Read Community
- Set Community
- System Location
- System Contract
- Trap Manager IP
MIBI, MIBII
Private MIB
Administration User Name: admin
Password: admin
Remote FW upgrade
Backup/ Restore Setting Save Current Setting
Restore Saved Setting
Reset to Factory Default
Firmware Upgrade Firmware Upgrade
Allow User to decide to Keep current setting.
Diagnosis Address to Ping
Hardware Specifications
MCU RTL8196C+RTL8192CE
Memory 32MB
Flash 8MB
Diameter * Height 135(L) x 105 (W) x 30(H)
Physical Interface
LAN: 1 x 10/100 Fast Ethernet RJ-45 (802.3af PoE standard supported)
Reset button
Power Jack
LED Definition Power x1 Green Booting: Blink at 1HBooting
System Ready: On
Firmware Upgrade: Blink at 4Hz
System Off: Power Off
WLAN x1 Green Link: Solid Light / Active: Blinking
(Receiving/ Transmitting data)
LAN x1 Green Link: Solid Light / Active: Blinking
(Receiving/ Transmitting data)
Adapter 12V / 1A ECB300
Long Range Multi-function AP/CB
2.4GHz 300Mbps 11b/g/n 29dBm AP/Router/WDS Bridge/WDS AP/CB/UP
Wireless Specifications
Frequency Band 2.400~2.484 GHz(11b, 11g, 11n)
Modulation
Technology
OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Operating Channels 11 for North America, 14 for Japan, 13 for Europe
Wireless Setting Operation Mode – AP / Router/WDS AP/WDS Bridge/WDS Station/Client
Bridge/Client Router/ Universal Repeater.
Wireless Mode – 11b/ 11g /11n
Channel Selection (Setting varies by Country)
Channel Bandwidth (Auto, 20Mhz, 40Mhz)
Transmission Rate (AP mode) - 11n only, 11b/g/n mix ,11b only ,11g only, 11b/g
mix.
Receive Sensitivity
(Typical)
2.412 ~ 2.472 GHz (11b) best ? -90 dBm
2.412 ~ 2.472 GHz (11g) best ? -88 dBm
2.412 ~ 2.472 GHz (11n) best ? -85 dBm
Available transmit
power
(The Max. Power may
be different depending
on local regulations)
11b 1Mbps - 11Mbps 29
11g
6Mbps - 9Mbps 29
12Mbps - 18Mbps 28
24Mbps - 36Mbps 24
48Mbps - 54Mbps 23
11n
MCS 0-1 / 8-9 26
MCS 2-3 / 10-11 25
MCS 4-5 / 12-13 24
MCS 6-7 / 14-15 23
Antenna External 5dBi SMA antenna
Environment & Mechanical & Certification
Temperature Range 0 to 50° C - Operating, -20 to 60 ° C - Storage
Humidity
(non-condensing)
90% or less – Operating, 90% or less - Storage
Certification FCC/CE/IC
