# Radio Technology: IEEE 802.11g Orthogonal Frequency Division Multiplexing (OFDM), IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS), EWC 802.11n Orthogonal Frequency Division Multiplexing (OFDM)

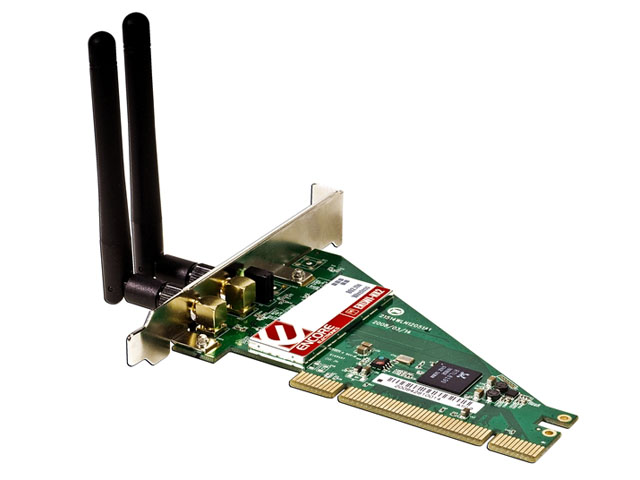

# Interface: 32-bit PCI Interface Card

# Transmission Rate: 1, 2, 5.5, 6, 11, 12, 18, 22, 24, 30, 36, 48, 54, 60, 90, 120, 180, 240, 270, 300Mbps (auto sensing for Rx) and 1, 2, 5.5, 6, 11, 12, 18, 22, 24, 30, 36, 48, 54, 60, 90, 120, 135,150Mbps (auto sensing for Tx)

# Receiver Sensitivity: 300Mbps: Typical - 65dBm @ 10% PER, 54Mbps: Typical - 70dBm @ 10% PER, 11Mbps: Typical - 85dBm @ 8% PER

# Modulation Schemes: DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)

# Media Access Protocol: CSMA/CA with ACK

# Transmit Power: 17dBm typically @ 802.11b, 13dBm typically @ 802.11g, 13dBm typically @ 802.11n

# Channel: USA: Channel 1-11, Europe: Channel 1-13, Japan: Channel 1-14

# Driver Support: Windows® 2000, Windows XP and Windows Vista™

# Security: 64/128-bits WEP Encryption, WPA-PSK, WPA2-PSK, WPA, and WPA2. WPS (Wireless Protected Setup)

# Wireless LAN Frequency Range: 2412 ~ 2484 MHz ISM band (channels 1 ~ 14) Depending on Regions

# Range Coverage: Indoor: Up to 100 meters (depends on environment)
Outdoor: Up to 300 meters (depends on environment)

# Antenna Type: Two PIFA antennas and one printed antenna

# Continuous Current Consumption: 350mA/480mA typ. for receive/transmit mode @ 802.11b, 390mA/480mA type for receive/transmit mode @ 802.11g, 500mA/630mA typ. for receive/transmit mode @ 802.11n

# Operation Temperature: 0 ~ 40 oC

# Storage Temperature: -10 ~ 70 oC

# Humidity: 10% ~ 95% RH, no condensation

# Certifications: FCC Part 15.247 for US and ETS 300 328 for Europe
