CERTIFICADO DE HOMOLOGACAO: 0245-05-2485

Superior Performance

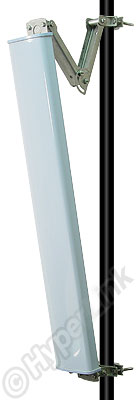

The HyperGain® HG2417P-090 Sector Panel WiFi Antenna combines high gain with a wide 90° beam-width. It is a professional quality “cell site” antenna designed primarily for service providers in the 2.4GHz ISM band. Applications include IEEE 802.11b and 802.11g wireless LAN systems.

Rugged and Weatherproof
This antenna features a heavy-duty plastic radome for all-weather operation. The mounting system adjusts from 0 to 20 degrees down-tilt.

Ideal for Wireless Internet "Cell" Sites
This WiFi antenna is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 90 degrees.

Specifications
Electrical Specifications
Frequency
2400-2500 MHz

Gain
17 dBi

Horizontal Beam Width
90 degrees

Vertical Beam Width
+/- 6.5°

Impedance
50 Ohm

Max. Input Power
250 Watts

VSWR
< 1.3:1 avg.

Connector
N Female

Lightning Protection Direct Ground

Mechanical Specifications
Weight
10 lbs. ( 4.54 Kg)

Dimensions
39 x 6 x 2.5 inches
(99 x 15.3 x 6.4 cm)

Radome Material
UV-Inhibited Polymer

Operating Temperature -40° C to to 85° C
(-40° F to 185° F)
Mounting
2 inch (5 cm) O.D. pipe max.

Polarization
Vertical

Down-tilt (mech)
0 to 20 degrees (adjustable)


Wind Loading Data
Wind Loading Front Surface Side Surface
Area 1.63 sq. ft.
(.15 sq. meters) 0.68
(.06 sq. meters)
@ 100 MPH (161 KPH) 74 lbs. (33.5 Kg) 35 lbs.(15.8 Kg)
