HOMOLOGADA ANATEL N: 0430-10-5784


Electrical Specifications
Frequency
2400-2500 MHz

Gain
17 dBi

Horizontal Beam Width
120 degrees

Vertical Beam Width
+/- 6.5°

Impedance
50 Ohm

Max. Input Power
250 Watts

VSWR
< 1.3:1 avg.

Connector
N Female

Lightning Protection Direct Ground

Mechanical Specifications
Weight
10 lbs. ( 4.54 Kg)

Dimensions
39 x 6 x 2.5 inches
(99 x 15.3 x 6.4 cm)

Radome Material
UV-Inhibited Polymer

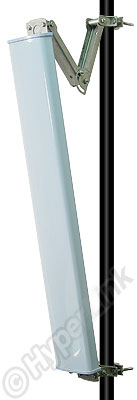

Mounting
2.75 inch (7 cm) O.D. pipe max.

Polarization
Vertical

Downtilt (mech)
0 to 20 degrees (adjustable)


Wind Loading Data
Wind Loading Front Surface Side Surface
Area 1.63 sq. ft.
(.15 sq. meters) 0.68
(.06 sq. meters)
