SNMP-GSH2404L es un switch de 24 puertos Gigabit Lite SNMP administrable con 20 puertos 10/100/1000Base-T y 4 puertos dual media que admite 10/100/1000Base-T opcional o módulos SFP

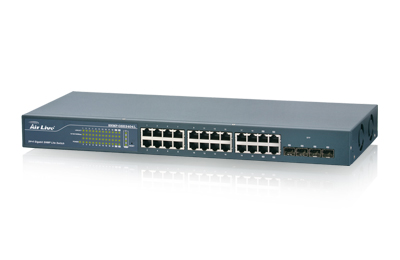

SNMP-GSH2404L 24+4 Gigabit SNMP Lite Switch


Optional Accessories


SFP-SX 1000Base-SX MiniGBIC Fiber Gigabit Transceiver, LC connector

SFP-LX-10 1000Base-LX MiniGBIC Fiber Gigabit Transceiver, LC connector, 10km



EAN Code

13 Code 4719869615954

14 Code 14719869615951


24 x 10/100/1000Mbps ports + 4 x Mini-GBIC ports (Combo)


24 ports can be used totally


802.1Q Tag-based VLAN, Port-based VLAN, IGMP Snooping


802.3ad Port Trunk with LACP, Per-Port Bandwidth Control


Port Mirror, 80.2.1X Radius Authentication, QoS, 802.1w RSTP


Power Saving techniques for reducing the power consumption


SNMP and Web Management













he SNMP-GSH2404L is a 24-port Gigabit Lite SNMP Managed Switch with 20 10/100/1000Base-T ports and 4 dual media ports that accommodate optional 10/100/1000Base-T or SFP modules. This Switch can be used to build high-performance switched workgroup networks. The switch can be managed through Ethernet port using CLI or Web-based management unit, associated with SNMP agent. In addition, the switch features comprehensive and useful functions such as QoS, Spanning Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON, IGMP Snooping capability via the intelligent software. It is suitable for both metro- LAN and office applications.



QoS with four priority queues

The switch supports not only Layer 2 802.1p Priority Queue control, but also supports programmable higher layer classification and prioritization to enable enhanced Quality of Service (QoS) support for real time applications based on information taken from Layer 2 to Layer 4, such as VoIP



802.1x Access Control Improve Network Security

802.1x features enable user authentication for each network access attempt. Port security features allow you to limit the number of MAC addresses per port in order to control the number of stations for each port. Static MAC addresses can be defined for each port to ensure only registered machines are allowed to access. By enabling both of these features, you can establish an access mechanism based on user and machine identities, as well as control the number of access



Support 802.1d Spanning Tree and 802.1w Rapid Spanning Tree

For mission critical environments with multiple switches supporting STP, you can configure the switches with a redundant backup bridge path so transmission and reception of packets can be guaranteed in event of any fail-over switch on the network.



Broadcast/Multicast/unknown- unicast Storm Control
To limit too many broadcast/multicast//unknown- unicast flooding in the network, these storm control
functions is used to restrict excess traffic. Threshold values are available to control the rate limit for each
port. Packets are discarded if the count exceeds the configured upper threshold.



Power saving

This function provides power saving for reducing the power consumption with "ActiPHY Power Management" and "PerfectReach Power Management". It could efficiently save the Switch Power when the clients are in idle status and detect the cable length to provide different power.



Build-in Web-based Management

We provide a more convenient GUI for users. You just need to configure SNMP-GSH2404L via web browser. It is helpful for users to be familiar with configuration of Switch easily.



If you are looking for a full featured yet friendly SNMP management switch, look no further. The SNMP-GSH2404L is your best choice for your network application.



Standard IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/100BASE-FX
IEEE802.3z Gigabit SX/LX
IEE802.3ab Gigabit 1000T
IEEE802.3x Flow Control and Back pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE802.1p Class of service
IEEE802.1Q VLAN Tagging
Interface 24 x 10/100/1000Mbps ports, Auto-negotiation, Auto-MDIX ports
4 x mini GBIC ports
Switch architecture Store and forward switch architecture.
Back-plane up to 48Gbps
MAC address 8K
Memory 512 Kbytes Flash Rom
128 Kbytes Memory RAM

LED System power
10/100/1000M TP Port 1 to 24: LINK/ACT,10/100/1000Mbps
1000M SFP Fiber Port 21 to 24: SFP(LINK/ACT)
Management Web / SNMP v1,v2c management console management
RFC Standard
- SNMP agent : MIB-2 (RFC 1213)
- Bridge MIB (RFC 1493)
- Interface Group MIB (RFC 2863)
SNMP Trap Event for exception management
Firmware upgradeable via web browser
Port Trunk
- Support IEEE802.3ad with LACP function.
- Up to 12 trunk groups and group member up to 12.
Supports IEEE802.1d STP & IEEE802.1w RSTP
VLAN
- Port based VLAN
- IEEE 802.1Q Tag-base VLAN, 4094 max, up to 24 active VLANs
- Tag-base VLAN supports egress/ingress packet filter
QoS policy
- Supports port based, Tag based, IPv4 ToS and DSCP
- Supports 802.1p QoS with 4 level priority queue
- Supports two scheduling, WRR and Strict
Supports IGMP snooping
Supports Port Mirroring
Supports Flooded Unicast / Multicast / Broadcast Storm Control
Supports ingress and egress per port bandwidth control, per level 128 Kbps, 512Kbps, 1Mbps, 10Mbps or 32Mbps
Supports 802.1x access control for port-based authentication
Support "ActiPHY Power Management" and "PerfectReach Power Management" to save the Switch’s power consumption
MTBF 68655 (hr)
Temperature Operating: 0 to 40°C
Storage: -10 to 70°C
Humidity Operating: 10% ~ 90%
Storage: 5% ~ 90%
EMI & safety FCC Class A, CE/EN60950
Power 100~240VAC 50/60Hz (maximum)
Power consumption 40 Watts
Produce Weight (g) 2400 g
Dimensions 442 x 170 x 44 mm






Este switch puede ser utilizado para implementar grupos de trabajos con redes switcheadas de alta performance. Puede administrarse a través de un puerto Ethernet utilizando CLI o una unidad de administración basada en web, asociada con un agente SNMP.

Además, el switch incluye funciones completas y útiles tales como calidad de servicio (QoS), Spanning Tree, VLAN, trunking de puertos, control de ancho de banda, seguridad de puerto, SNMP/RMON, capacidad IGMP Snooping vía software inteligente. Se adapta tanto a una LAN como a una aplicación de oficina.
