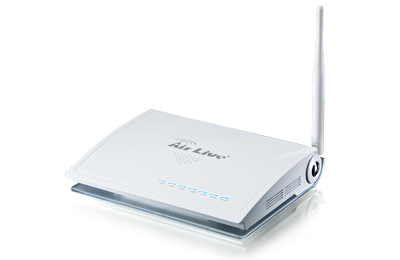

Air3G
1 Watt 11n 3G Broadband Router
30dBm 3G/Broadband Router with USB 2.0, PoE, and HotSpot functions 30dBm 3G/Broadband Roteador com USB 2.0, PoE e HotSpot funções


Up to 9 times more wireless coverage than normal powered AP/Routers Até 9 vezes mais cobertura wireless AP Routers / powered normal


Work with 3G/3.5G/UMTS/ HSDPA USB Dongle Trabalhar com 3G/3.5G/UMTS / HSDPA USB Dongle


Hotspot authentication function Hotspot função de autenticação


Multiple SSID and Bandwidth Control Múltiplos e Controle de Banda SSID


Green AP power saving function Green AP função de poupança de energia


1 x USB 2.0 Port 1 x Porta USB 2.0


WAN port for ADSL/Cable Modem support Porta WAN para ADSL / Cable Modem apoio


3G Router, AP, Client, Bridge, Repeater modes Roteador 3G, AP, Client, Bridge, Repeater modos

Hardware Feature 150N 1T1R 11b/g/n Radio 150N 1T1R 11b/g/n Rádio
Up to 30dBm Output Power (20dBm in EU, 23dBm in the US) Até 30dBm potência de saída (20dBm na UE, em 23dBm os E.U.)
8MB Flash, 32MB SDRAM 8MB Flash, 32MB SDRAM
1x USB 2.0 Port 1x Porta USB 2.0
Hotspot authentication function Hotspot função de autenticação
4 x 10/100 Mbps Ethernet Port with Auto MDI/MDI-X support 4 x 10/100 Mbps Ethernet Port com apoio Auto MDI / MDI-X
12V Passive PoE Port (LAN1) 12V Port PoE Passivo (LAN1)
WAN Port WAN Port
7 LED indicators 7 indicadores LED
Wall Mount Screw Holes Wall Mount Buracos Parafuso
Reset Button Reset Button
WPS Push Button Botão WPS
Antennas Antenas 1 x R-SMA antenna connectors 1 x antena conectores SMA-R
1 x 5dBi dipole antenna 1 x antena 5dBi dipolo
Frequency Band Frequency Band USA (FCC) 11 Channels: 2.412GHz~2.462GHz E.U.A. (FCC) 11 Canais: 2.412GHz ~ 2.462GHz
Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz Europa (ETSI) 13 Canais: 2.412GHz ~ 2.472GHz
South America: 14 Channels : 2.412GHz~2.472GHz América do Sul: 14 Canais: 2.412GHz ~ 2.472GHz
Data Rate Taxa de Dados 802.11n 802.11n
- 20 MHz BW(LGI): 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 - 20 MHz BW LGI (): 65, 58,5, 52, 39, 26, 19,5, 13, 6.5
- 40 MHz BW(LGI): 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 - 40 MHz BW LGI (): 135, 121.5, 108, 81, 54, 40,5, 27, 13,5
- 20 MHz BW(SGI): 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 - 20 MHz BW SGI (): 72.2, 65, 57,8, 43,3, 28,9, 21,7, 14,4, 7,2
- 40 MHz BW(SGI): 150, 135, 120, 90, 60, 45, 30, 15 - 40 MHz BW SGI (): 150, 135, 120, 90, 60, 45, 30, 15
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9 e 6 Mbps
802.11b: 11, 5.5, 2 and 1 Mbps 802.11b: 11, 5.5, 2 e 1 Mbps
Modulation Modulação 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16 QAM, 64 QAM-
802.11g: OFDM 802.11g: OFDM
802.11b: CCK,QPSK,BPSK 802.11b: CCK, QPSK, BPSK
TX Output Power TX Power Output ETSI(Europe) ETSI (Europa)
- 802.11b : About 20dBm max - 802.11b: 20dBm Sobre max
- 802.11g : About 20dBm max - 802.11g: 20dBm Sobre max
- 802.11n : About 19dBm max - 802.11n: 19dBm Sobre max
F CC(The United States) CC F (Estados Unidos)
- 802.11b : About 23dBm max - 802.11b: 23dBm Sobre max
- 802.11g : About 23dBm max - 802.11g: 23dBm Sobre max
- 802.11n : About 22dBm max - 802.11n: 22dBm Sobre max
South America Ámérica do Sul
- 802.11b : About 30dBm max - 802.11b: 30dBm Sobre max
- 802.11g : About 29dBm max - 802.11g: 29dBm Sobre max
- 802.11n : About 27dBm max - 802.11n: 27dBm Sobre max
Receiver Sensitivity Sensibilidade do receptor 802.11b 11Mbps ? -90dBm 802.11b 11Mbps-90dBm ?
802.11g 54Mbps ? -73dBm 802.11g 54Mbps-73dBm ?
802.11n HT20 MCS7 ? -70dBm 802.11n HT20 MCS7 ?-70dBm
802.11n HT40 MCS7 ? -67dBm 802.11n-HT40 MCS7 ? 67dBm
Operation Modes Modos de Operação 3G Broadband Router Mode 3G Broadband Router Mode
AP Mode Modo AP
Client Mode Modo Cliente
WDS Repeater Mode Modo Repetidor WDS
WDS Bridge Mode WDS Modo Bridge
Advance Functions Advance Funções Setup Wizard Assistente de Configuração
WPS Support Suporte WPS
WAN and 3G Auto Connection Bakcup WAN e conexão 3G Bakcup Auto
Multiple SSID Virtual AP functions Múltiplos SSID Virtual funções AP
Bandwidth Control / Traffic Shaping Controle de banda de tráfego / Shaping
Hotspot Authentication: 40 accounts and 20 concurrent users Hotspot Authentication: 40 contas e 20 usuários simultâneos
3G/3.5G/UMITS/HSDPA/CDMA-2000 Support Suporte 3G/3.5G/UMITS/HSDPA/CDMA-2000
WPA with PSK /AES support ,WPA2 support WPA PSK com AES apoio / suporte a WPA2
Privacy Separator support Privacidade apoio Separator
Hide SSID Support Hide SSID Suporte
Support adjustable output power Suporte potência de saída ajustável
Bootloader Protection and Emergency Firmware Upload Code Bootloader Proteção e Emergência Código Upload Firmware
Radius Supported Radius com suporte
Up to 40 Static DHCP entries Até 40 entradas Static DHCP
Static Route, Virtual Server, URL Filter, Firewall Static Route, Servidor Virtual, filtro de URL, Firewall
Green AP Energy Saving feature AP Green Energy Saving recurso
Firmware upgrade and configuration backup via Web Atualização de firmware e backup de configuração via Web
Configuration Backup and Restore Configuração de backup e restauração
12V Passive PoE Port (DC Injector not included) 12V Passive PoE Porto (DC Injector não incluídas)
Certification Certificado CE CE
FCC FCC
Dimensions and Weight Dimensões e Peso Dimension: 154 x 130 x 316 mm Dimensão: 154 x 130 x 316 milímetros
AP Unit Weight(Approximate): 280g AP Peso unitário (aproximado): 280g
Package Weight(Approximate): 686g Pacote Peso (aproximado): 686g
Environment Ambiente Operating temperature: 0~50? Temperatura de operação: 0 ~ 50 ?
Operating humidity (non-condensing): 20~80% Umidade relativa (sem condensação): 20 ~ 80%
Storage temperature: -20~65? Temperatura de armazenamento: -20 ~ 65 ?
Storage humidity: 95% Max Umidade de armazenamento: 95% Max
Power Supply Alimentação Input: 100~240Vac/50~60Hz Entrada: 100 ~ ~ 60Hz 240Vac/50
Output: DC 12V/1A Saída: DC 12V/1A


Model No. Modelo No.

AirLive Air3G AirLive Air3G Long Range Wireless-b/g/n 3G Broadband PoE Router 3G Long Range Wireless-b/g/n Broadband Router PoE

EAN Code Código EAN

13 Code 13 Código 4719869615763 4719869615763

14 Code 14 Código 14719869615760 14719869615760



Included Accessories Acessórios Incluídos


Packing content: Embalagem de conteúdo: Air3G, CD-ROM, QIG, 12V Power adapter, 1x 5dBi Antenna RJ-45 Cable Air3G, CD-ROM, guia de instalação rápida, adaptador 12V Power, 1 antena de 5dBi cabo RJ-45
