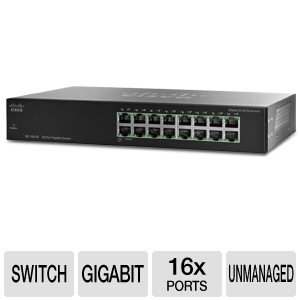

Cisco SG100-16 16-Port Gigabit Unmanaged Small Business Switch
PRODUCT HIGHLIGHTS
16 x RJ-45 10/100/1000 Ports
32Gbps Switching Capacity
23.8mpps Forwarding Capacity
Status LEDs
802.3 10/100/1000 Standards Compliant
HOL Blocking Prevention
9216 bytes Jumbo Frame

Performance
Switching Capacity 32 Gbps
Forwarding Capacity 23.8 mpps

Layer 2 Switching
Head-of-Line (HOL) Blocking HOL blocking prevention
Jumbo Frames 9216 bytes

Quality of Service (QoS)
Priority Levels 4 x hardware queues
Scheduling Priority queuing and weighted round-robin (WRR)
Class of Service 802.1p priority based

Product Specifications
Ports 16 x RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-
T ports

Cabling Type Unshielded twisted pair (UTP)
Category 5 or better for 10BASE-T/100BASE-TX; 1000BASE-T
recommended

LEDs System/PWR, Link/Activity, 100M, Gigabit

Standards 802.3 10BASE-T Ethernet
802.3u 100BASE-TX Fast Ethernet
802.3ab 1000BASE-T Gigabit Ethernet
802.3z Gigabit Ethernet
802.3x flow control
802.1p priority
IEEE 802.3az, Energy Efficient Ethernet

Certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part
15 (CFR 47) Class A

Minimum Requirements • Category 5 Ethernet network cable
• TCP/IP, network adapter, and network operating system (such as
Microsoft Windows, Linux, or Mac OS X) installed on each computer in the
network

Environmental Requirements Operating Temperature: 32 to 104°F (0 to
40°C)
Operating Humidity: 10 to 90%, relative, non-condensing
Storage Temperature: -4 to 158°F (-20 to 70°C)
Storage Humidity: 10 to 90%, relative, non-condensing

Power Requirements 100-240VAC, 50-60 Hz, internal, universal

Dimensions (W x H x D) 11 x 1.8 x 6.7" (279.4 x 44.5 x 170 mm)

Weight 3.15 lb (1.43 kg)
