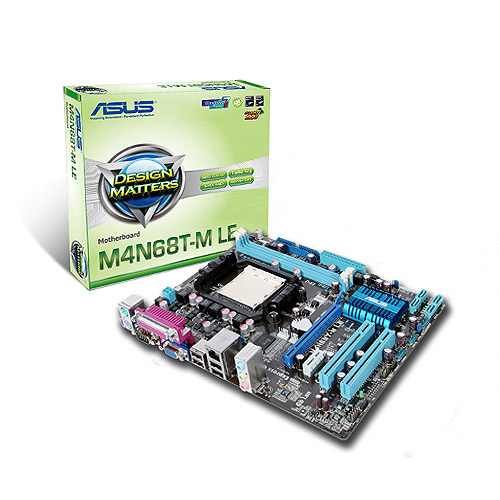

M4N68T-M LE
Entry-level DDR3 platform with
High Quality & Easy over-clocking
* Dual channel DDR3 1800(O.C.)
* Turbo Key
* ASUS EPU
* Express Gate
* Gb Lan
* SATA RAID
CPU AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors
AMD Cool "n" Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
*Refer to www.asus.com for the AMD CPU support list
Chipset NVIDIA Geforce 7025/nForce 630a
System Bus Up to 2000/1600 MT/s
Memory 2 x DIMM, Max. 8 GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz
**Please refer to www.asus.com or user manual for Memory QVL.
***When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots 1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA Integrated Programmable Shader model3.0 DirectX 9 graphics processor
Max. shared memory: 256 MB
Supports RGB with max. resolution 1920 x1440 (@75Hz)
Storage Southbridge
1 xUltraDMA 133/100
4 xSATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD
LAN Gb LAN
Audio VT1708S High Definition Audio 8-Channel CODEC
*Choose the chassis with HD audio module in front panel to support 8-Channel audio output
- Support S/PDIF out interface
- Support Multi-streaming, Single SPDIF Out, Anti-pop Function
USB 10 USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel)
ASUS Unique Features ASUS EPU-4 Engine
ASUS Express Gate
ASUS Q-Fan
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS AI NET 2
ASUS MyLogo 2
Overclocking Features Intelligent overclocking tools
- ASUS Turbo Key
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
- HT tuning from 200MHz up to 550MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports 1 x Parallel port
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
3 x Audio jacks
Internal I/O Connectors 3 x USB connectors (6 ports)
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Front panel audio connector
1 x SPDIF out
1 x Internal speaker connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel connector
BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS v2.5, ACPI 2.0a
Accessories User"s manual
1 x I/O Shield
2 x SATA cable(s)
1 x UltraDMA 133/100 cable
Support Disc Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
Form Factor uATX Form Factor
9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
