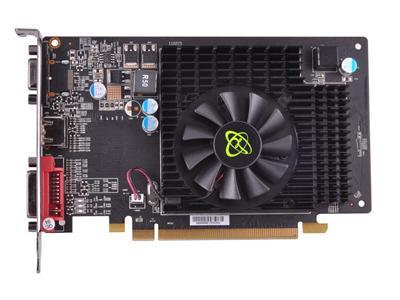

ATI Radeon™ HD 5570 - 650 MHz Core 1024 MB DDR3 HDMI DVI VGA - HD-557X-ZHL2

General
UPC Number:778656055353
Processor & Bus
Chipset version:HD5570
GPU Clock:650 MHz
Memory
Memory Bus:64 bit
Memory Clock:1.0 GHz
Memory Size:1 GB
Memory Type:DDR3
Feature Technologies
AMD HD3D Technology:Y
Other Features
AMD - CrossFire ready:Y
Display Output
HDMI Ready:Y
Max Supported Resolution (ANALOG):2048 x 1536
Max Supported Resolution (DIGITAL):2560 x 1600
Output - DL-DVI:1
Output - HDMI:1
Output - VGA:1
Dual link Support:Y
Physical
Card Dimension (cm):18.0 x 11.2 x 1.88
Card Dimension (inch):7.1 x 4.5 x 0.75
Card Profile:Single
Package Dimensions (cm):20.1 x 13.2 x 5.1
Package Dimensions (inch):5.2 x 7.9 x 2
Package Weight (Kg):0.4 est.
Package Weight (lb):0.88 est.
Thermal Solution:Fansink
Thermal Type:Single slot

Requirements
Minimum Power Supply Requirement:500 Watt
XFX Recommended Power Supply:XFX 650W XXX edt PSU
