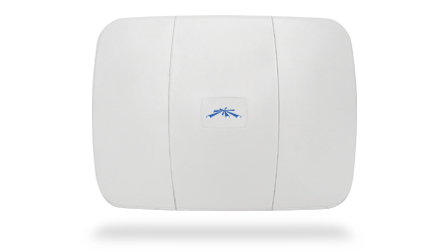

Power Station 5
Model: PS5-22V Datasheet
www.ubnt.com
DataRate Avg.Power Tolerance DataRate Sensitivity Tolerance
6Mbps 26 dBm +/-1.5dB 6Mbps -94 dBm +/-1.5dB
9Mbps 26 dBm +/-1.5dB 9Mbps -93 dBm +/-1.5dB
12Mbps 26 dBm +/-1.5dB 12Mbps -91 dBm +/-1.5dB
18Mbps 26 dBm +/-1.5dB 18Mbps -90 dBm +/-1.5dB
24Mbps 26 dBm +/-1.5dB 24Mbps -86 dBm +/-1.5dB
36Mbps 24 dBm +/-1.5dB 36Mbps -83 dBm +/-1.5dB
48Mbps 23 dBm +/-1.5dB 48Mbps -77 dBm +/-1.5dB
54Mbps 21 dBm +/-1.5dB 54Mbps -74 dBm +/-1.5dB
Polar Plot H-Plane
Front to Back Ratio 30dB+
3.7 lbs
18 in. length x 13 in. height x 2in. Width
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
12V, 1A (12 Watts). Supply and injector included
6.5 Watts
Pole Mounting Kit included
Outdoor UV Stabilized Plastic (Antenna) and die cast metal (system)
Site Survey with preferred ESSID, Antenna Alignment tool, Discovery Utility
8-26dBm (1dB steps)
CTS/RTS, ACK Timeout, Fragmentation Threshold
Antenna Alignment tool, Discovery Utility
Logo / Link Customization
Ethernet active, uptime, packet success/errors
802.11e / WMM Support
WEP/WPA
Software feature list constantly evolving, please visit www.ubnt.com for latest information
5/10/20 MHz Channels, Fast Frames, Compression, Super Frames
WEP/WPA
802.11a OFDM
802.11a OFDM
RANGE PERFORMANCE
TX SPECIFICATIONS RX SPECIFICATIONS
40MHz*
ANTENNA INFORMATION
Outdoor (BaseStation Antenna Dependent): Over 50km
ADJUSTABLE CHANNEL SIZE SUPPORT
5MHz 10MHz 20MHz
Wireless Modular Approvals FCC Part 15.247, IC RS210, CE
RADIO OPERATING FREQUENCY 5.15-5.850GHz
SYSTEM INFORMATION
Processor Specs Atheros AR2313 SOC, MIPS 4KC, 180MHz
Memory Information 16MB SDRAM, 4MB Flash
Networking Interface 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Gain 22dBi (5300-5900MHz)
RoHS Compliance YES
REGULATORY / COMPLIANCE INFORMATION
Polarization Vertical
3dB Beamwidth 10 Degrees
Impedance 50 ohm
Survival Wind 185km/hr
VSWR 2:01
Enclosure Size
Weight
Enclosure Characteristics
Mounting Kit
Power Method
Max Power Consumption
Power Supply
Operating Temperature
Operating Humidity
SOFTWARE INFORMATION
Modes Station, StationWDS, AP Bridge
Shock and Vibration ETSI300-019-1.4
SNMP,DHCP,NAT
Mikrotik, StarOS, Ikarus, MADWIFI
5 to 95% Condensing
-40C to 85C (System optimized for hi-temp)
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Tested Compatibility
Services
Utilities
Distance Adjustment
Power Adjustment
Utilities
Security
QOS
Statistical Reporting
Other
Atheros Specific Features
Security
