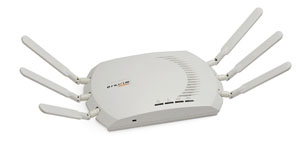

Proxim Wireless ORiNOCO AP-8000 802.11n Dual Radio Access Point with 2 Integrated 802.11a/b/g/n Radios. P/N: 9422-WD, 75932
With the introduction of its ORiNOCO 802.11n product line, Proxim Wireless is announcing the availability of the industry’s first 802.11n solution to achieve 320 Mbps of throughput with a dualradio solution. In addition, Proxim’s new 802.11n products have been designed to be customerfriendly and overcome the barriers of cost and complexity faced by competing products to deliver 802.11n networks at half the price of existing WLANs. With Proxim’s ORiNOCO® AP-8000 and AP- 800 802.11n access points, organizations of all sizes can achieve higher performance than their existing wired and wireless LANs while avoiding the costly controller upgrades, deployment challenges, and additional network planning that have deterred enterprises from upgrading to 802.11n. IEEE 802.11n is the next generation of the Wi-Fi standard. The primary advantages of 802.11ncompliant products are significantly higher throughput and longer range. With the advent of 802.11n technology, the truly unwired enterprise is possible – yet many organizations cite the high cost of migration and the complexity of deployment as barriers to moving to 802.11n.

Higher Performance than Existing Wired LANs/WLANs

Proxim ORiNOCO 802.11n products enable enterprises of all size to finally unwire the wired LAN by providing greater performance than existing Ethernet networks.

Over 100 Mbps throughput for greater performance than wired LANs
5x the throughput of existing WLANs
High reliability for quad play applications
The only solution to provide dual 2.4 Ghz and dual 5Ghz operation
The first solution to provide support for the entire 5 Ghz spectrum worldwide, providing the frequencies needed to resolve interference issues
Greatest Ease of Use

Superior engineering make Proxim ORiNOCO 802.11n products the first to overcome the deployment challenges faced by competing products.
Backward compatible with all existing Wi-Fi 802.11a/b/g and 802.11b/g clients
When deployed, existing access points can simply be swapped out and replaced without running additional Ethernet cables that are required by competing 802.11n access points
Proxim’s 802.11n solution provides 2 times the range of standard 802.11a/b/g access points to ensure optimal coverage and enhanced signal strength to all wireless clients in the office so users can truly become untethered
Industry-Leading ROI

Proxim 802.11n solution drastically reduces the cost of 802.11n deployments by eliminating the need for forklift upgrades, additional wiring, or additional network planning.

ORiNOCO 802.11n access points are the only APs on the market that are completely 802.3af compliant in all configurations, which avoids the cost of additional wiring as required by 802.3at compliant APs
Though some competitors claim 802.3af compliance, they are only compliant in limited configurations – which means that most configurations will require an additional wire (additional cost) to power each AP
By enabling ORiNOCO 802.11n access points to be simply swapped out in the location of existing APs, Proxim reduces the amount of time and cost spent upgrading networks to 802.11n
Compatibility with Proxim End-to-End Portfolio

As always, Proxim leverages existing technology to ensure that all products – from WLANs and Wi-Fi Mesh to WiMAX to Point-to-Point – work together from end to end.

All ORiNOCO 802.11n products operate seamlessly with existing Proxim products, making it an easy addition to your end-to-end wireless network
All ORiNOCO 802.11n products are easily managed via ProximVision ES, the central network management console that manages existing Proxim end-to-end products
Specifications:

RADIO & TRANSMISSION

RADIO
Single Radio Access Point with 802.11a/b/g/n radio
3x3 MIMO

RADIO CONFIGURATIONS
2 x 802.11b/g/n
2 x 802.11b/g/n and 1 x 802.11a/n
2 x 802.11a/n

MODULATION METHOD
MSC0 - MSC15 for 802.11n (6.5Mbps - 300Mbps)
BPSK, QPSK, 16-QAM and 64-QAM for 802.11a and 802.11g (6Mbps-54Mbps)
DSSS for 802.11b (1Mbps-11Mbps)

FREQUENCY BAND
5.15 - 5.85 GHz
2.4 - 2.483 GHz

TRANSMIT POWER

802.11n
19.5 dBm

802.11a
17 dBm

802.11bg
16.5 dBm

INTERFACES

ANTENNA CONNECTOR
6 RP-SMA connectors

ANTENNAS
6 Dual-Band reverse SMA connector Omni Antenna with 3dBi gain

ETHERNET
Auto-sensing 10/100/1000BASE-T Ethernet

PHYSICAL

DIMENSIONS UNPACKAGED
11 5/16 x 7 x 1 3/4 in (287.34 x 177.8 x 44.75 mm)

WEIGHT UNPACKAGED
1.5 lbs (.7 kg)

ENVIRONMENTAL

TEMPERATURE
0° to 55°C (Operating)
-20° to 75°C (Storage)

HUMIDITY
Max 95% relative humidity (non-condensing)

ELECTRICAL

POWER SUPPLY
110/220 VAC, 50/60 Hz (input), 5V 3A (output) power adapter

POE
802.3af

LEDS
Four indicators on the top panel indicate power, wireless traffic, Ethernet traffic, and error conditions.

MANAGEMENT

LOCAL
RS-232 Serial Port; DB9 Female

REMOTE
SNMP v1; SNMP v2c ; DHCP; Telnet;HTTP; TFTP; SNTP; Scan & Change; BootP; Syslog

SECURE
SSH, SNMPv2, HTTPS

MTBF
43,800 hours

PACKAGE CONTENTS
(1) AP-8000 802.11n access point
(1) 110/220V worldwide power adapter
(1) Wall/ceiling mount kit
(1) Cable security attachment
(6) 2.4GHz/5GHz omni-directional antennas with reverse SMA connectors
(1) Installation CD-Rom with Software and Documentation
(1) Quick Install Guide
