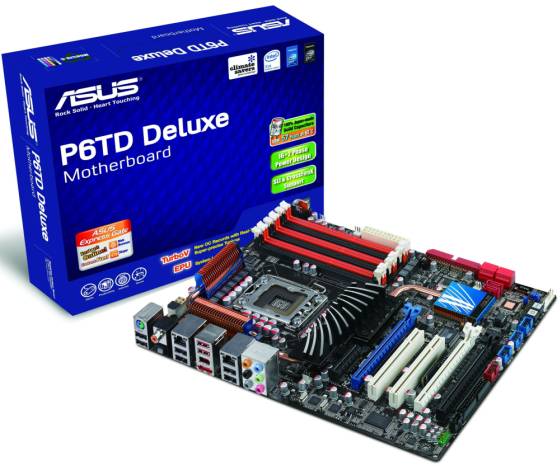

Marca: ASUS
Modelo: P6TD Deluxe
CPU Socket Type LGA 1366
CPU Type Core i7
FSB QPI 6.4GT/S


Chipsets
North Bridge Intel X58
South Bridge Intel ICH10R


Memória
Numero de Slots 6×240pin Triple Channel
Memória suportada DDR3 2000(O.C)/1866(O.C)/1800(O.C)/1600(O.C)/1333
Maximo Suportado 24GB

Expansion Slots
PCI Express 2.0 x16 3 x PCIe 2.0 x16 (at x16/x16/x1 or x16/x8/x8 mode)
PCI Express x1 1
PCI Slots 2


Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6
SATA RAID 0/1/5/10


Onboard Audio
Audio Chipset ADI AD2000B
Audio Channels 8 Channels


Onboard LAN
LAN Chipset Marvell 88E8056
Second LAN Chipset Marvell 88E8056
Max LAN Speed Dual 10/100/1000Mbps


Portas do Painel
PS/2 1
USB 8 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports


Onboard USB
Onboard USB 3 x USB connectors support additional 6 USB ports


Onboard 1394
Onboard 1394 1x 1394a
