CERTIFICADO DE HOMOLOGAÇÃO: 1726-08-4940

PITGAIL: (17124) MMCX-12 FEMEA LMR100 48CM

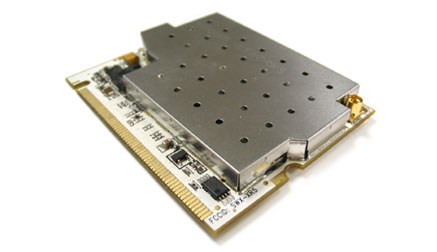

UBIQUITI XTREMERANGE5

MINI-PCI ADAPTER 802.11a 400mW




Model No: XR5

400mW 802.11a Power
-94dBm Rx sensitivity
MMCX connector
5/10/20/40 MHz Channels ? Atheros 5006 chipset based

495-499 Montague Expwy.
Milpitas, CA 95035
T (408)-942-3085
F (408)-351-4973
http://www.ubnt.com
DataRate Avg.Power Tolerance DataRate Sensitivity Tolerance
6Mbps 28 dBm +/-1.5dB 6Mbps -94 dBm +/-1.5dB
9Mbps 28 dBm +/-1.5dB 9Mbps -93 dBm +/-1.5dB
12Mbps 28 dBm +/-1.5dB 12Mbps -91 dBm +/-1.5dB
18Mbps 28 dBm +/-1.5dB 18Mbps -90 dBm +/-1.5dB
24Mbps 28 dBm +/-1.5dB 24Mbps -86 dBm +/-1.5dB
36Mbps 26 dBm +/-1.5dB 36Mbps -83 dBm +/-1.5dB
48Mbps 24 dBm +/-1.5dB 48Mbps -77 dBm +/-1.5dB
54Mbps 23 dBm +/-1.5dB 54Mbps -74 dBm +/-1.5dB
DataRate Current Tolerance DataRate Current Tolerance
6Mbps 1.80 A +/-100 mA 6Mbps 300 mA +/-100 mA
9Mbps 1.80 A +/-100 mA 9Mbps 300 mA +/-100 mA
12Mbps 1.80 A +/-100 mA 12Mbps 300 mA +/-100 mA
18Mbps 1.80 A +/-100 mA 18Mbps 300 mA +/-100 mA
24Mbps 1.80 A +/-100 mA 24Mbps 300 mA +/-100 mA
36Mbps 1.50 A +/-100 mA 36Mbps 300 mA +/-100 mA
48Mbps 1.30 A +/-100 mA 48Mbps 300 mA +/-100 mA
54Mbps 1.10 A +/-100 mA 54Mbps 300 mA +/-100 mA
Indoor (Antenna Dependent):
Outdoor (Antenna Dependent):
For help with MADWIFI or other Special Driver Support, Please e-mail support@ubnt.com
Chipset Atheros, 6th Generation, AR5414 with SuperA/Turbo Support
TX Channel Width Support 5MHz / 10MHz / 20MHz / 40MHz
Advanced Mobility / QuickHandoff WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti
Cisco Support CCX 4.0 Certified Driver/Utility also available from Ubiquiti
