USA O MESMO PIG TAIL QUE O AP 600 PROXIM

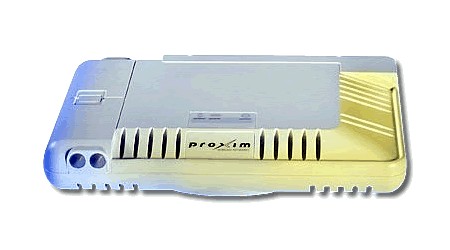

Proxim’s ORiNOCO AP-700 Access Point delivers 802.11b/g or 802.11a operation at a moderate price point. +20 dBm output power. +20 dBm for 802.11b and +18 dBm for 802.11g. Embedded diversity antennas featuring horizontal and vertical polarization for superior coverage. External antenna connectors. IEEE 802.11i compliant with AES encryption and 802.1x authentication using dynamic, rotating encryption keys. Rogue AP detection in both the 2.4 and 5 GHz bands proactively protects your network Quality of Service for latency sensitive voice and video applications using IEEE 802.11e.

Next-Generation Access Point Brings QoS and Performance to Mid-Size Enterprises
The ORiNOCO AP-700 balances enterprise-scale security, management and Quality of Service features with a moderate price point – and either 802.11a or 802.11b/g mode operation. The new, highperformance AP-700 is the entry-level solution in Proxim’s next-generation line of access points supporting enterprise voice and video applications. The AP-700 is perfect for mid-size production Wi-Fi networks.
Industry-leading performance with new Super Mode
New level of intelligent rogue access point and client detection
Sophisticated hotspot interfaces with Radius integration
Pre-standard IEEE 802.11e quality of service support for latency-sensitive applications
Plenum rating and other important safety features
Proactive Security Measures to Protect Your Network
ORiNOCO access points support the latest security standards, including IEEE 802.11i and AES encryption, and add proactive security measures.

IEEE 802.1X mutual authentication
Dynamic per-user, per-session rotating keys
Rogue access point detection, notification
Secure management interfaces: SNMPv3, SSL and SSH
Intra-cell blocking to prevent client-to-client snooping
Easy to Deploy and Manage
Ease of deployment and integration with the wired network are critical factors in a successful, profitable wireless LAN rollout. ORiNOCO access points excel with key capabilities that simplify WLAN deployment.
Tools to speed installation and optimization: automatic channel selection, adjustable transmit power, external antenna connectors
Wireless repeating functionality in areas without Ethernet wiring
Remote management via SNMP, HTTP and Telnet
Extensive RADIUS accounting support
Powerful group configuration, software updates and automatic alerts via Proxim Wavelink Mobile Manager
Reliable by Design
With over 10 years of experience in the design and manufacture of wireless LANs, Proxim understands that service providers and enterprises require the same uptime and reliability in a wireless network as in a wired network. ORiNOCO access points offer:

Robust features for enterprise, public access – compared to consumer grade APs
Automatic reconfiguration of security policy in the event of power loss
Dual firmware image support – for rollback in the event of software or config change problems
IEEE 802.3af Power-over-Ethernet, plenum rating, built-in Kensington lock and external antenna connectors.
Applications

Small and medium corporations Mobile access to improve employee, contractor and customer efficiency
Universities Flexible, immediate, mobile faculty and student connectivity in dorms, classrooms, libraries and campus quads
Hospitals and medical clinics Real time information system wide for better patient care and reduced errors
Local, state and federal agencies Fast access to information to serve constituencies better
Public hotspots Robust, secure, Wi-Fi connectivity for airports, convention centers, hotels
ORiNOCO AP-700 Specifications

ADDITIONAL FEATURES
Tri-mode 802.11b, 802.11g and 802.11a Support User-selectable 802.11b/g or 802.11a operation
Field upgradeable Software and hardware upgradeable to support new standards
IEEE 802.11i and AES Highest authentication and encryption methods including mutual authentication, message integrity check (MIC), per-packet keys initialization vector hashing and broadcast key rotation
Rogue AP Detection Detects, alerts and stops unauthorized rogue Access Points and clients in both the 2.4 and 5.8 GHz bands*
Secure Management Interfaces SNMPv3, SSL and SSH protect against unauthorized AP changes via the management interface
Multiple VLAN Support with different security settings Up to 16 separate VLANs each able to support a different security setting
Auto configuration via DHCP Ensures new APs automatically receive correct configuration and prevents security vulnerabilities with deliberate resets
Central management and configuration Allows centralized management of AP settings including group updates of firmware*
Assured Software Upgrades Guarantees new AP configuration file is valid before deleting current image - dual image support
Quality of Service Draft IEEE 802.11e along with 802.1p and 802.1q improves performance of video and voice applications.
High Output Power +20 dBm for 802.11b, +18 dBm for 802.11g and 802.11a
Transmit Power Control Supports settable transmit power levels to adjust coverage cell size
Automatic Channel Selection Simplifies installation by choosing best possible channel upon installation
Super Mode Delivers greater than 30 Mbps throughput for ORiNOCO and Atheros-based clients while simultaneously compatible with non-Atheros clients
Designed for Public Hot Spots Extensive RADIUS Accounting support, intra-cell blocking to prevent client-to-client snooping,
multiple VLAN support with different security modes
Advanced Filtering Capabilities IEEE 802.1d bridging with static MAC address filtering, network protocol filtering, Proxy ARP,
multicast/broadcast storm threshold filtering,TCP/UDP port filtering, intra-cell traffic filtering,
and Spanning Tree support
IEEE 802.3f and AC Power Decreases installation costs up to $1000 per AP when Power over Ethernet is available
Integrated diversity 2.4 and 5 GHz antennas with horizontal and vertical polarization Delivers optimum coverage in any mounting position and excellent performance in high multipath environments
External antenna connectors for 802.11b/g and 802.11a Allows use of shaped and higher gain antennas to design for most efficient AP placement**
Plenum rated Meets safety and insurance requirements when installed in air spaces
Wi-Fi Certified Industry certification guarantees interoperability with other Wi-Fi certified clients
INTERFACE
Wired Ethernet 10/100 base-T Ethernet (RJ-45)
Wireless Ethernet 1 integrated 802.11a/b/g radio
RS-232 Unit configuration
HARDWARE SPECIFICATION
Memory 32 MB SDRAM; 8 MB Flash
PHYSICAL SPECIFICATIONS
Dimensions 7.1 x 4.8 x 1.1 in (180 x 120 x 27 cm)
Weight 0.65 lbs (295 kg)
ENVIRONMENTAL SPECIFICATIONS
Temperature Operating 0°C to 40°C
Storage -10°C to 70°C

Humidity Operating 95% (non-condensing)
Storage 95% (non-condensing)

POWER SUPPLY
Types Integrated module
Autosensing 100/240 VAC; 50/60 Hz
IEEE 802.3af Active Ethernet for power over Ethernet

LEDS Power, Ethernet LAN Activity
Wireless 802.11a/b/g Activity

MANAGEMENT
SNMPv1, SNMPv2c and secure SNMPv3 management
Standard & ORiNOCO traps
ORiNOCO MIB, Etherlike MIB, 802.11 MIB, Bridge MIB, MIB-II
TFTP support
Telnet CLI, Serial Port CLI (no proxy required)
HTTPS (SSL) server for secure web-based management
Proxim WaveLink Mobile Manager for group management (not included)
Syslog
DHCP Server and Client

PACKAGE CONTENTS
AP-700 access point with built-in 802.11a/b/g radio
Power supply and support for Active Ethernet and IEEE 802.3af
Software and documentation
Cable cover and mounting bracket

* In conjunction with Proxim Wavelink Mobile Manager
** 8675-AU, 8675-EU2 and 8675-US2 does not include external antenna connectors
