Tsunami QuickBridge II 60 Link

NAO É PAR - SO 1 PEÇA
Manufact PN # 64678-SP24x7-2


Wireless Point to Point Ethernet Backhaul Bridges 100 Base-T Wireless Point to Point Ethernet Bridges 5.3-5.8 GHz Unlicensed Frequency Band Wireless Point to Point Ethernet Bridges


Email This Page to a Friend


Proxim Tsunami QuickBridge II 60 Wireless 54Mbps Aggregate Throughput Ethernet Bridge. 5.8GHz UNII System (Mnf.Part # 64678)


Winncom PN # WWM58-QB60-II
Manufact PN # 64678
List Price: Login/Call
Login and Stay on this page











The Tsunami QuickBridge II 60 Link provides unsurpassed ease of use for Enterprises and Service Providers needing a quick and effective point-to-point solution. Everything needed for the complete link is provided in a single box, including two weatherized radios with integrated directional antennas, two power adapters, cables, mounting hardware, and software.

Operating in the unlicensed 5.8 GHz UNII frequency band III, Tsunami QuickBridge II provides quick time-to-market deployment with an audible antenna alignment system. For hubbing applications, Tsunami QuickBridge II can be co-located with several other QuickBridge II radios using an optional GPS synchronization antenna. Robust management is available through the use of standards-based management for integration into existing network management platforms. Proxim’s years of carrier-class experience set the bar for usability and functionality.

Voice and Data Connectivity Made Simple
Proxim’s Tsunami QuickBridge II 60/40 is a complete, user-installable wireless point-to-point bridging solution designed for reliable long distance and low latency voice and data connectivity. This high-performance hop-in-a-box is available with 54 Mbps aggregate throughput or with 34 Mbps and two integrated T1/E1 voice channels or with Highly affordable and exceptionally easy to install, Tsunami QuickBridge II eliminates the deployment challenges and recurring fees associated with standard T1, E1, or DS-3 installations. As a replacement for a DS-3 leased line, Tsunami QuickBridge II pays for itself in less than two months.

Co-location of multiple QuickBridge II radios increase capacity, extends range and provides network redundancy between locations
Available with two integrated T1/E1 voice channels for low-cost voice transmission
Built-in SNMP support and QuickBridge Manager software allow flexible management of local and remote radios
Designed for Complete Ease of Use
Tsunami QuickBridge is the easiest-to-install family of broadband wireless bridges on the market. Requiring no training or wireless experience, they can be set up and installed within hours. Each solution includes everything you need to set up a link right out of the box.
Hop-in-a-box solution includes two radios with integrated antennas, cables, mounting hardware, power supply and documentation
Easy to use software enables fast configuration
Audible tones ensure antennas are properly aligned
Cost-effective Connectivity
The Tsunami QuickBridge family offers the best price performance for campus networking and backhaul applications. Supporting voice and data transmission, they can easily replace T1/E1 or DS-3 connections with a payback of less than one year.

Capacity from 6 to 54 Mbps supports enterprise and service provider bandwidth-intensive applications
Connectivity for buildings located up to 6 miles away
Synchronous voice channels available for low cost PBX extensions
Flexibly Manage Your Entire QuickBridge Network
Designed for outdoor networks, Tsunami QuickBridge management tools enable network managers to view and proactively maintain all radios located throughout multiple facilities. In contrast to leasing lines, network ownership gives managers complete visibility into local and remote bridges.

Built-in SNMP support and web-based QuickBridge Manager simplify remote java-based management and integrate easily into existing network policies
Proactive alarm notifications enable network managers to maximize network performance


Secure & Reliable
A wireless alternative to a wired network provides greater control over network quality. Backed by more than 20 years of wireless design innovation, Proxim"s Tsunami QuickBridge solutions offer the highest security and reliability available in networking today.

Up to 99.995% RF link availability
Meets or exceeds wired network security
Proprietary Link ID provides secure wireless transmission
Proxim Tsunami QuickBridge II Specifications

Aggregate
Throughput
Channel Plans Treshold
(BER=1X10-6) EIRP Output Power System Gain
(Including Antenna) Distance
(Miles/KM)
54 Mbps 7 - 77 dBm +36 dBm 133 dB Up to 3 miles/5 Km
34 Mbps - 81 dBm 137 dB Up to 4 miles/6 Km
18 Mbps
- 89 dBm 145 dB Up to 6 miles/10 Km
Radio Characteristics Channel Plan Frequency Channel Plan Frequency
Frequency Plans 3A 5740.401 MHz 4A 5743.85 MHz
3B 5774.984 MHz 4B 5764.60 MHz
3C 5809.568 MHz 4C 5785.35 MHz
4D 5806.10 MHz
Frequency Band
5.725 – 5.825 GHz
Transmit Output Power
+16 dBm max; +15 dBm typical
Antenna
Integrated LHCP; 20dBi, 10° azimuth by 10° elevation
Maximum Receive Level
-20 dBm error free
Latency
2.5 msec typical, 5 msec maximum
Access Method
Time Division Duplex
Modulation Technique
QPSK with equalization and FEC
Security Key
16 Character Security ID (Alphanumeric); authentication and PN transmission; scrambling
Compliance
US: FCC Part 15.247 ISM; Canada: IC RSS 210; Model 40100-25
Data Interface

Ethernet Interface
10 /100BaseT via AC power adapter
Connector
RJ-45 female modular plug w/ weather-protected shell
Cable Type
CAT5
Management

Local, Remote Access
QuickBridge Manager (Java-based GUI) for discovery, status, and configuration; SNMPv2 embedded in radio with Enterprise MIB II
Software Upgradeable
Over-the-air reprogramming
Security
2-level password access on Manager
Electrical Specifications

AC Power
Adapter included, 110 VAC or 220 VAC, 450mA; Output: 28V DC, 0.6 A
DC Power (to unit)
+18 – +28 VDC
Power Connector
Power Connector
Environmental Specifications

Operational Temperature
-25°–55° C
Storage Temperature
-55°– 85° C
Humidity
5–100% condensing
Altitude
Up to 15,000 ft
Wind Loading
115 mph
Physical Specifications

Dimensions
10.5 x 10.5 x 4.5 in; 26.5 x 26.5 x 11.3 cm
Weight
10 lbs /4.5 kg
Mounting (Installation)
Pole Mount (hardware included for 1.5 – 3.0 in/3.8 – 7.6 cm O.D)

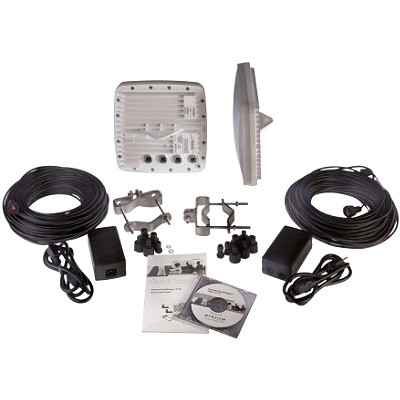

Package Contents
2 QuickBridge Radio Units
2 sets mounting hardware
2 power adapters
2 sets 50 meter Cat5 cable
2 sets user documentation
1 CD-ROM with user documentation and QuickBridge Manager software
