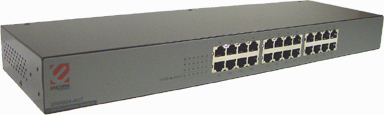

ENH924-AUT

Product Specifications: Key Features:
Standard:
IEEE802.3 and IEEE802.3u standards
Interface:
Twenty-four 10/100Mbps RJ-45 NWay ports
NWay Protocol Support:
Network speed: 10Mbps and 100Mbps Duplex mode: Full and Half
Buffer Memory:
3MByte for the whole system
Filtering / Forwarding Rate:
10Mbps: 14,880pps/14,880pps 100Mbps: 148,800pps/148,800pps
Emission:
FCC Class A, CE
Rich LED Indicitors:
System: Power Port: Link/Activity, FDX/COL, and Speed
Status Buttons:
Operating Humidity:
10% ~ 90% (non-condensing)
Dimension / Power Supply:
445 x 195 x 42 mm 100-240VAC, 50/60 Hz
Complies with IEEE802.3 and IEEE802.3u standards
Twenty-four ports for 100Base-TX and 10Base-T connectivity
Supports NWay protocol for speed (10/100Mbps) and duplex mode (Half/Full) detection
19" standard rack-mount design
Supports full and half duplex operation on all ports
Operates at maximum packet filtering and forwarding rate
Store-and-forward architecture filters fragment & CRC error packets
Supports 1K MAC address entries in whole system
3MBytes buffer memory
Supports extensive LED indicators and status button for network diagnostics
Internal universal switching power supply(100-240VAC, 50/60Hz)
FCC Class A, CE









Standard:
IEEE802.3 and IEEE802.3u standards
Interface:
Twenty-four 10/100Mbps RJ-45 NWay ports
NWay Protocol Support:
Network speed: 10Mbps and 100Mbps Duplex mode: Full and Half
Buffer Memory:
3MByte for the whole system
Filtering / Forwarding Rate:
10Mbps: 14,880pps/14,880pps 100Mbps: 148,800pps/148,800pps
Emission:
FCC Class A, CE
Rich LED Indicitors:
System: Power Port: Link/Activity, FDX/COL, and Speed
Status Buttons:
Operating Humidity:
10% ~ 90% (non-condensing)
Dimension / Power Supply:
445 x 195 x 42 mm 100-240VAC, 50/60 Hz
Complies with IEEE802.3 and IEEE802.3u standards
Twenty-four ports for 100Base-TX and 10Base-T connectivity
Supports NWay protocol for speed (10/100Mbps) and duplex mode (Half/Full) detection
19" standard rack-mount design
Supports full and half duplex operation on all ports
Operates at maximum packet filtering and forwarding rate
Store-and-forward architecture filters fragment & CRC error packets
Supports 1K MAC address entries in whole system
3MBytes buffer memory
Supports extensive LED indicators and status button for network diagnostics
Internal universal switching power supply(100-240VAC, 50/60Hz)
FCC Class A, CE
